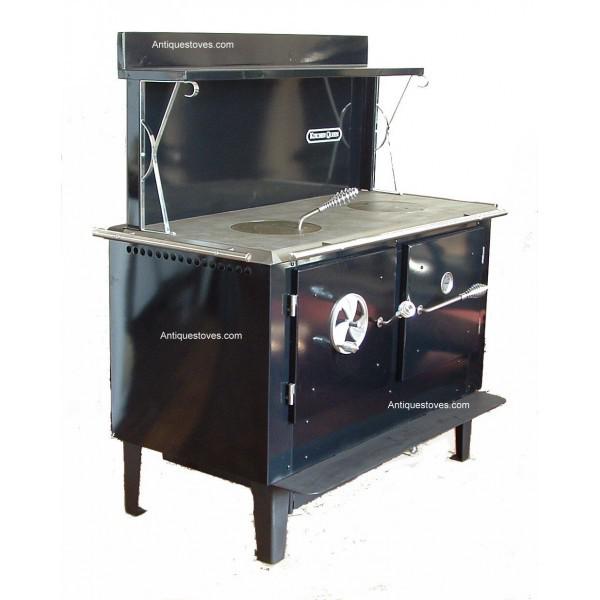

Kitchen Queen 480 Wood Cook Stove
Kitchen Queen 480 Wood Cook Stove

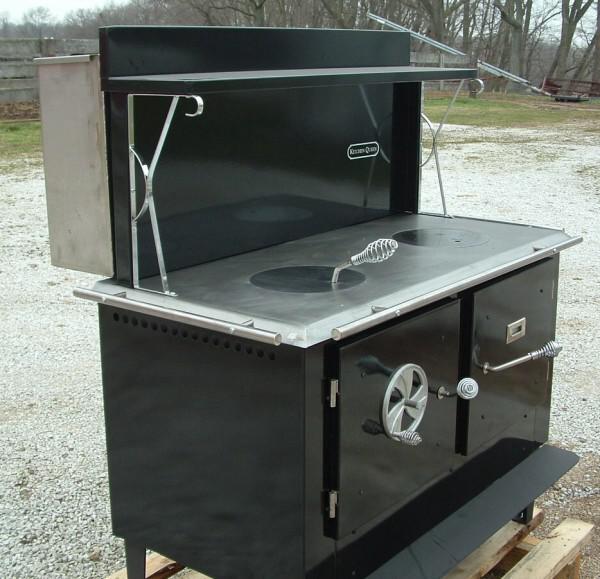

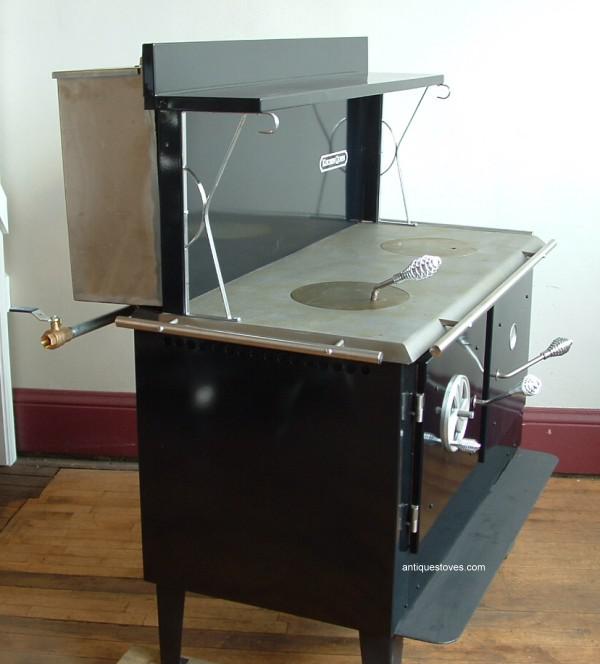

Kitchen Queen 480 Wood Cook Stove - show with some options Kitchen Queen 480 Stove - OPTIONS AVAILIBLE - Fire View Door, Oven View Door, Water Reservoir, Hot Water Coil, Warming Oven, Summer Grate, option information click on ACCESSORIES Tab
The Kitchen Queen Cook Stove has been designed and tested with economy, efficiency , and utility in mind. The Kitchen Queen works with natural heat convection. The design is a radical and daring departure from the wood ranges of yesteryear.
It will:
| Cook your Food | Heat your Water | Warm your Home |
|
Bake your Bread |
Save you Money |
|
Kitchen Queen features: |
||
| New design reduces creosote buildup to a bare minimum.
Under normal circumstances, virtually no liquid creosote is deposited in the stove. |
Two hot water heating systems:
a 17 or 25 gallon reservoir that fits neatly on the back of the stove (taking up no extra floor space), or coils for hooking up to a remote storage tank. |
Constructed of heavy gauge steel with all seams welded throughout for lifetime airtight construction. |
| Large airtight firebox capable of heating up to 2500sq. ft. | Choice of two sizes. | Large fire loading door reduces wood splitting. |
| Large even-heating oven.

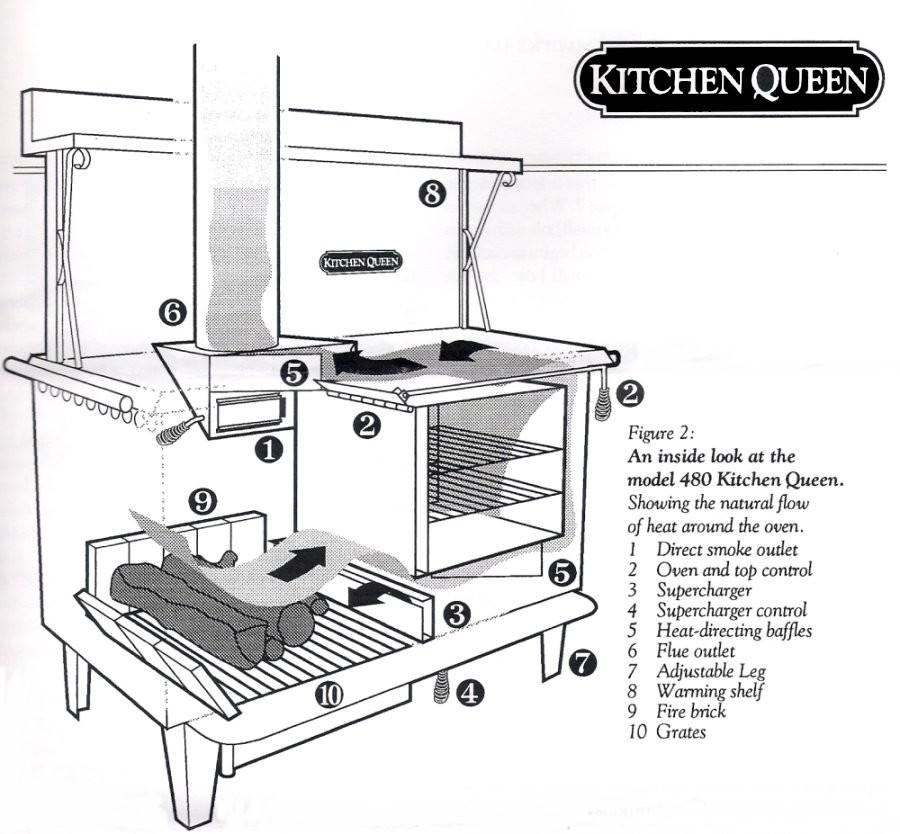

Heat is first directed under the oven to work with natural heat convection. |
Porcelain enamel finish | High back with 7" or 9" warming shelf keeps things you need handy. |

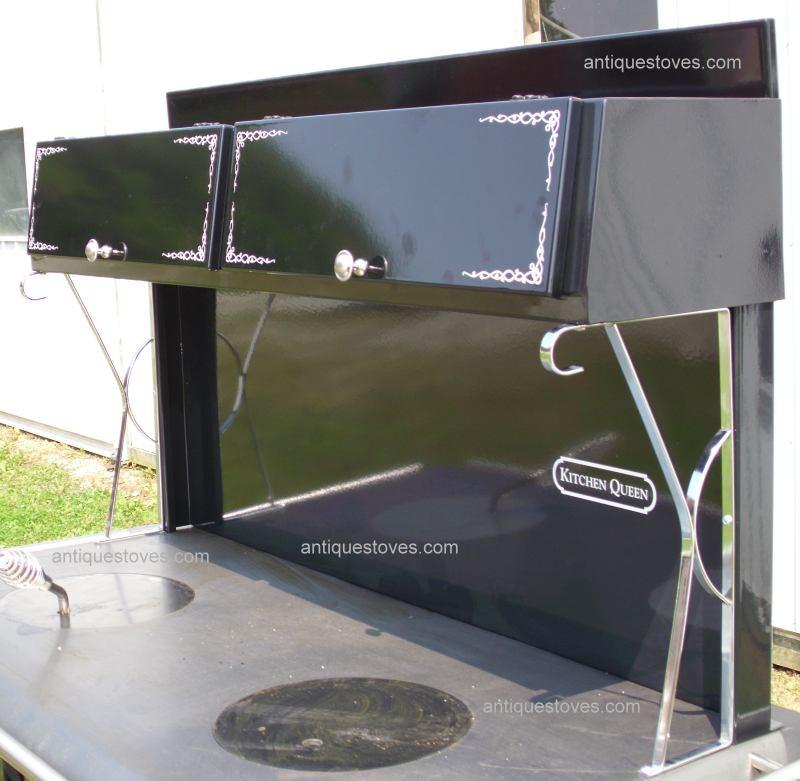

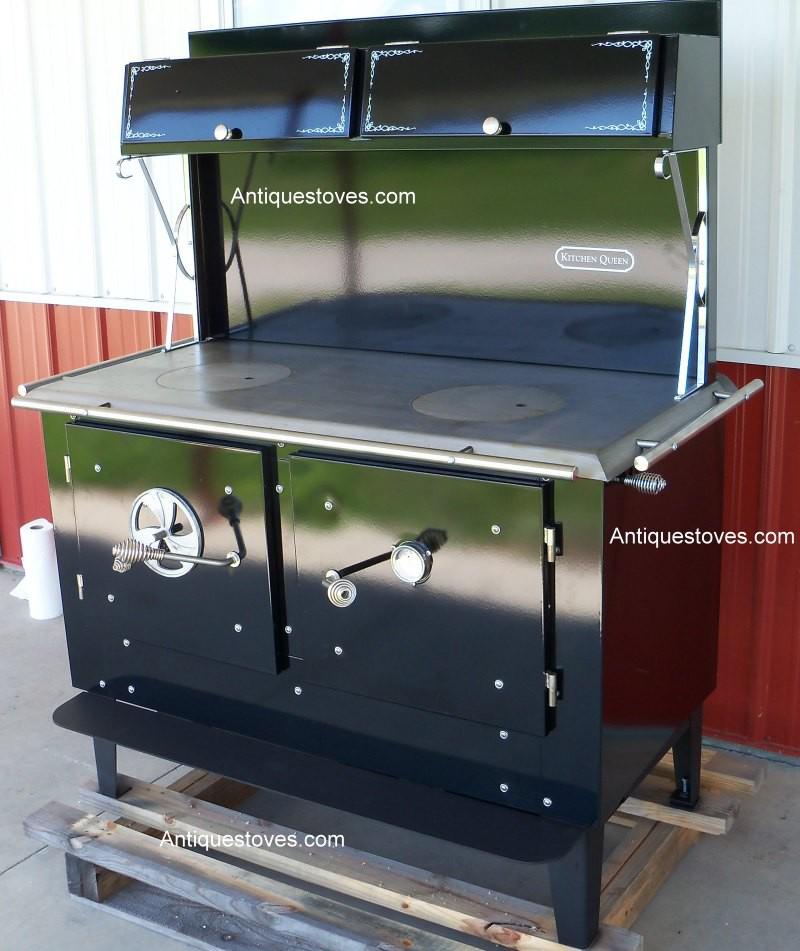

| Warming Oven or Shelf | Stay cool spring handles. No splitting or burning off. | |

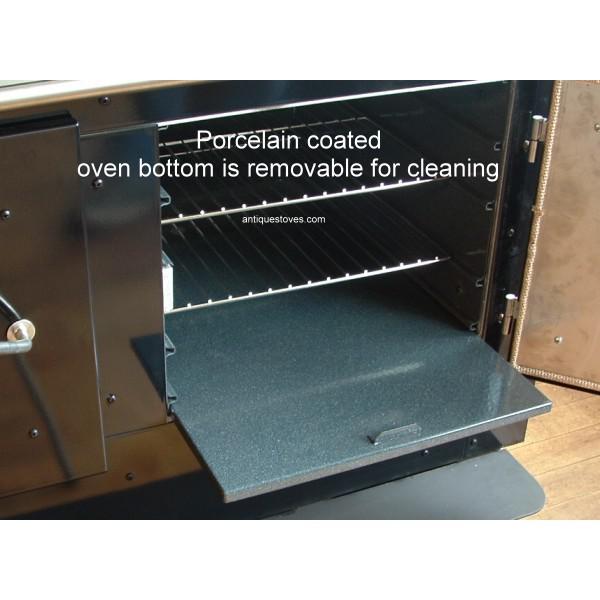

| Porcelain enamel oven liner. | Smooth one-piece top with 10 inch lids makes cleaning easier. |

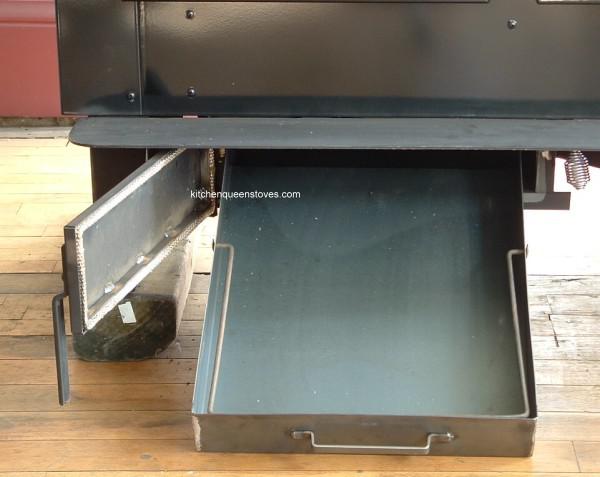

Grates and ash pan for easy cleaning. |
| Kitchen Queen | 480 Specs |
| Overall size | 51" L x 32" W x 32" H |
| Cooking surface | 43" x 21" |
| Back | 45" W x 23" H |
| Oven | 16" W x 13" H x 22" D |
| Oven capacity | 8 loaves |
| Firebox | 20" W x 16" H x 22" D |
| Log Length | 19" |
| Firebox door | 14" x 16" |
| Approx. burn time | 12 to 16 hours |
| Approx. heating area | 1500 to 2400 sq. ft |
| Flue outlet size | 7 inches |
| Reservoir capacity | 24 gallons |
| Shipping weight | 800 lbs. |
| UL - ULC Listed | 1482 |
| Clearances to Combustibles | |
| Side | 12" |
| Rear | 18" |
| Corner | 12" |
| Clearances to protected surfaces | .............. |
| Side | 6" |
| Rear | 6" |
| Corner | 6" |
| Chimney Connector | |
| Unprotected Surface | 18" |
| Protected Surface | 6" |
